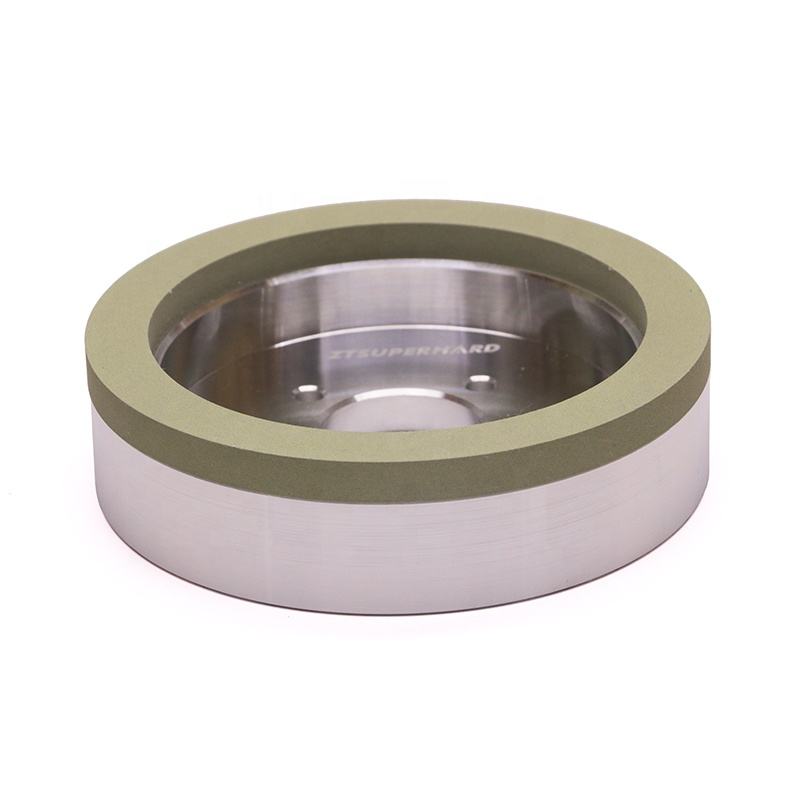

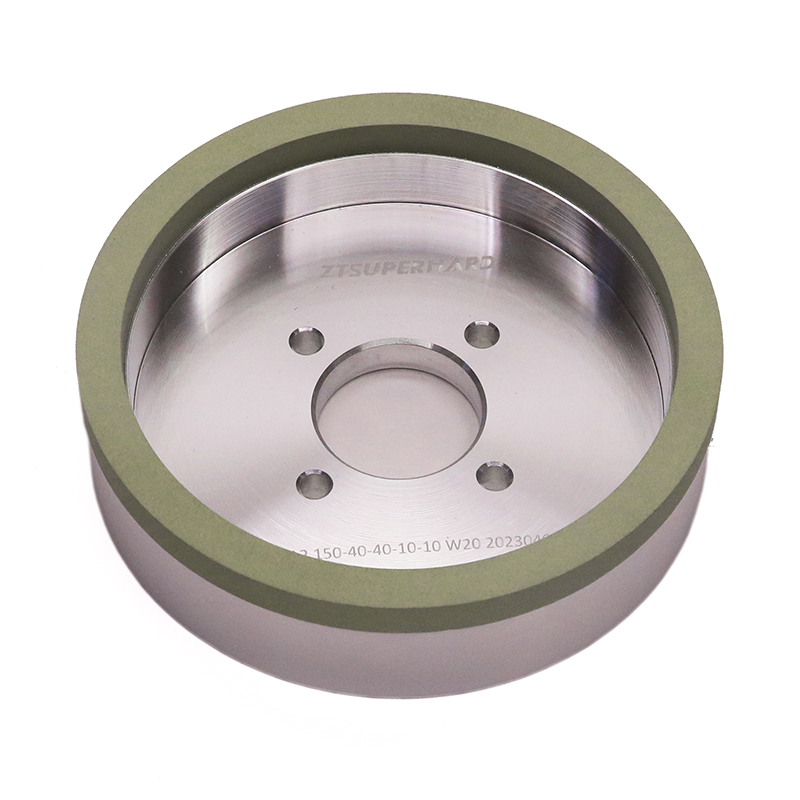

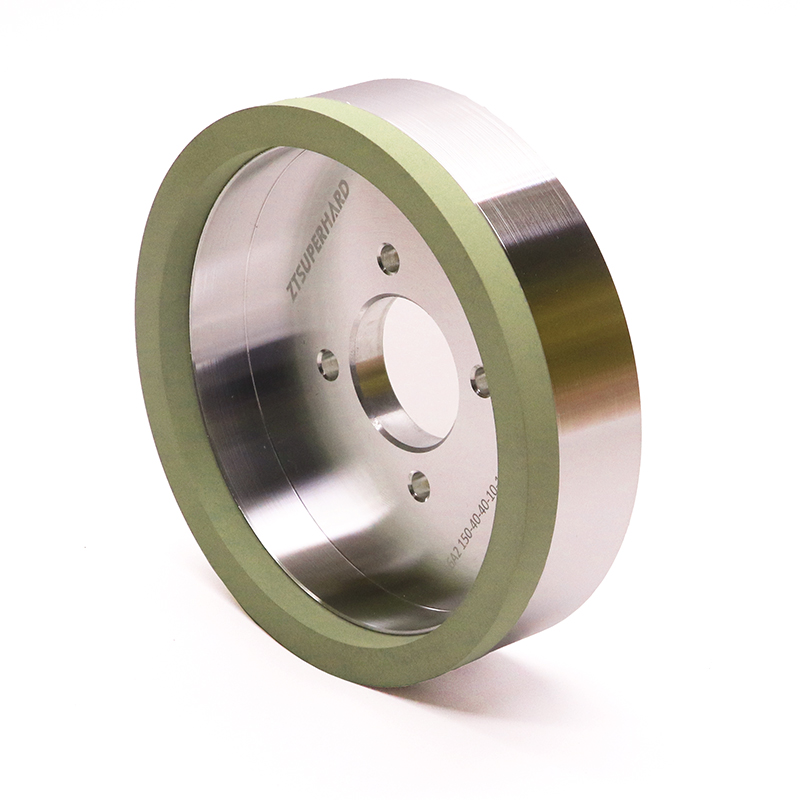

ZTSUPERHARD® Vitrified Bond Diamond Grinding Wheel Has The Characteristics Of Sharp Cutting, High Grinding Efficiency, Long Life, Easy Installation And So On. It Is Not Easy To Heat And Plug In The Grinding Process, Small Thermal Expansion, Easy To Control The Machining Precision And Dressing, And Is Widely Used In The Profile Grinding, Edge Grinding And Chamfer Grinding Of Pcd/pcbn/mcd Tools. ZTSUPERHARD® Vitrified Bond Diamond Grinding Wheels Have Complete Specifications And Wide Range Of Grit Sizes From 100# To 10000# Which Can Meet The Rough Grinding, Fine Grinding, Super-fine Grinding In The Process Of Tool Processing, And Provide Customers With High-quality Grinding Experience.
1. The Working Layer Of Pore Structure Can Easily Discharge The Chips Of The Workpiece, Improve The Grinding Efficiency, And Also Can Take Away More Heat Generated By Grinding, Which Is Conducive To Better Improve The Quality Of The Machining Surface.
2. Good Self-sharpening, Less Dressing Times, High Grinding Efficiency, High Wear Resistance
3. The Use Of Vitrified Bond Grinding Wheel Can Get Good Geometric Shape, Effectively Reduce The Rate Of Reject, Improve The Precision Of Processing Workpiece.
4. Strict Size Control, Can Be Applied To Cnc Grinding Machine And Manual Grinding Machine, Good Consistency Of The Grinding Wheel, Easy To Install, Easy To Operate.

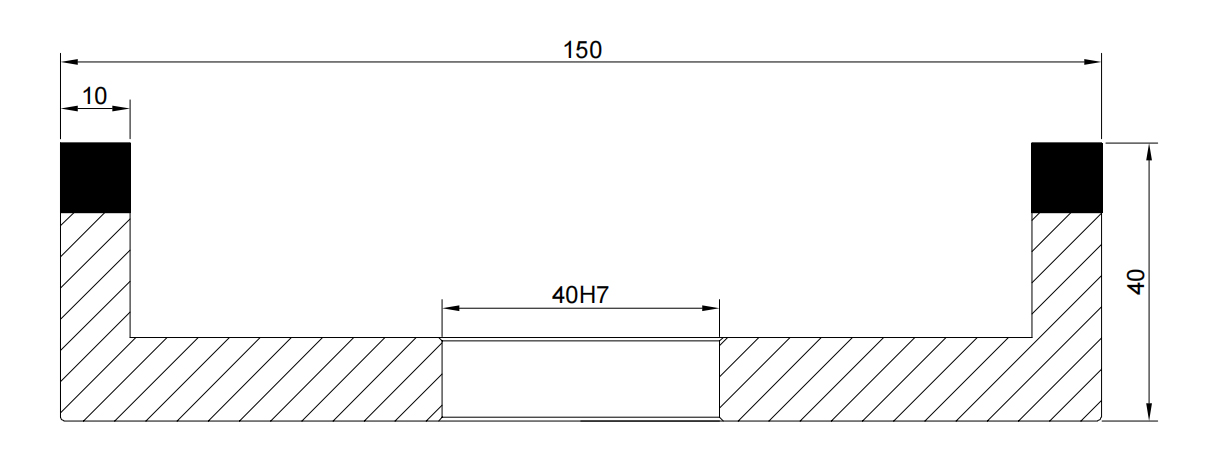

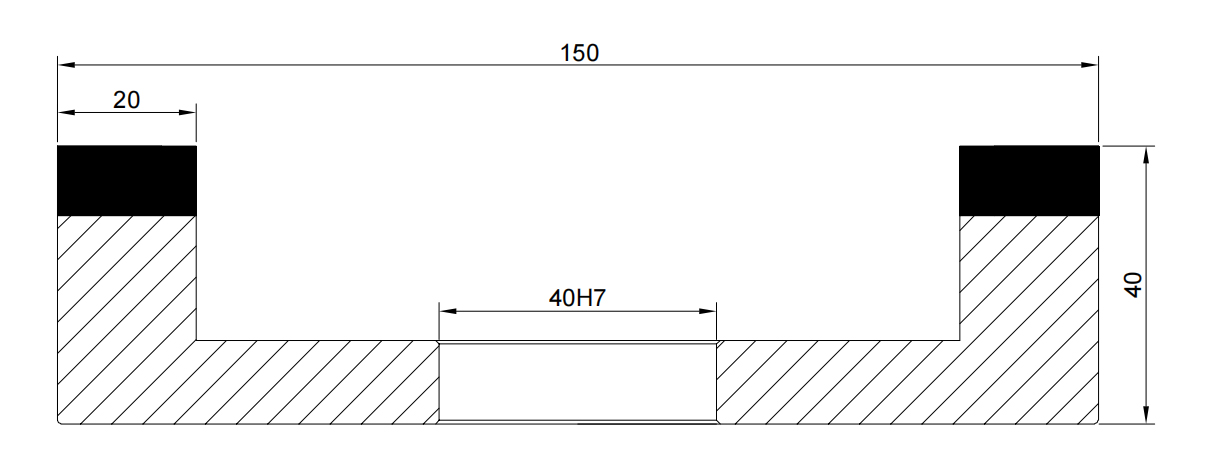

| D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |
| 150 | 40 | 31.75/32/40 | 2 | 5-10 |
| 150 | 40 | 31.75/32/40 | 3 | 5-10 |
| 150 | 40 | 31.75/32/40 | 5 | 5-10 |
| 150 | 40 | 31.75/32/40 | 10 | 5-10 |
| 150 | 40 | 31.75/32/40 | 15 | 5-10 |
| 150 | 40 | 31.75/32/40 | 20 | 5-10 |
In addition to the above specifications can also be customized according to customer requirements
